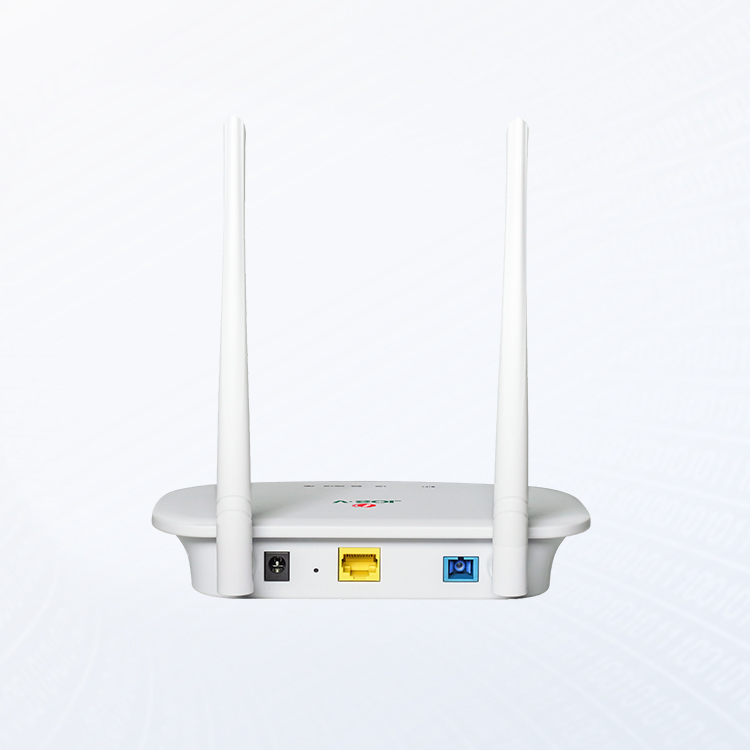

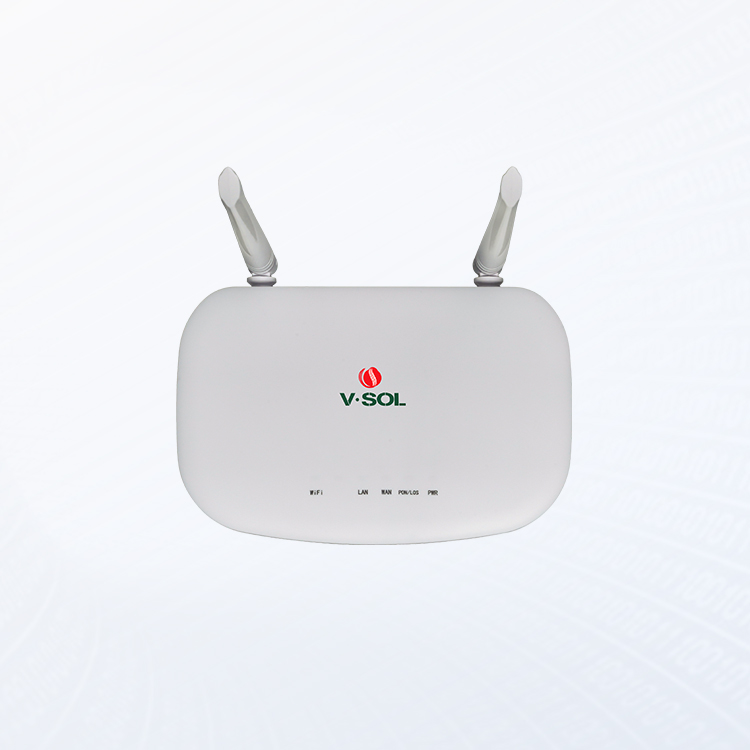

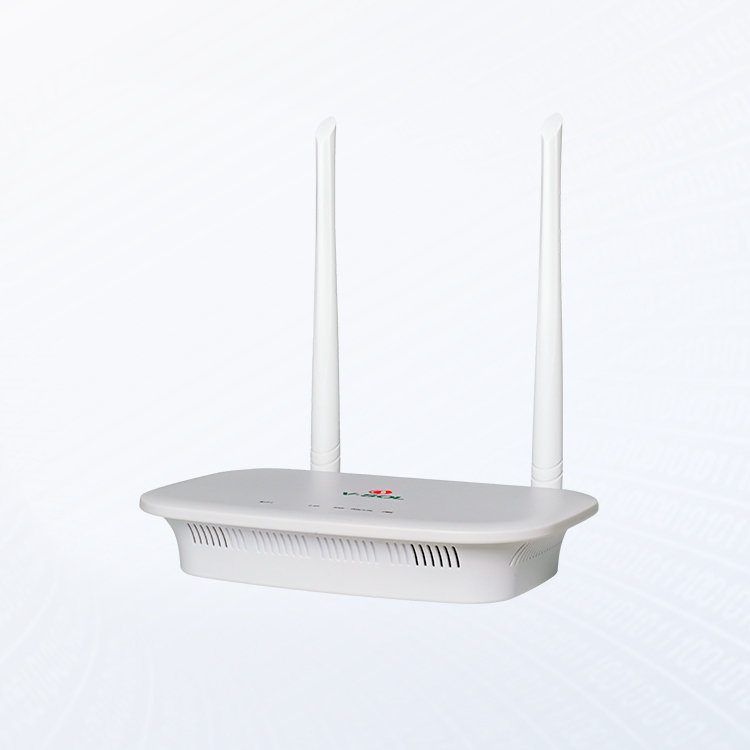

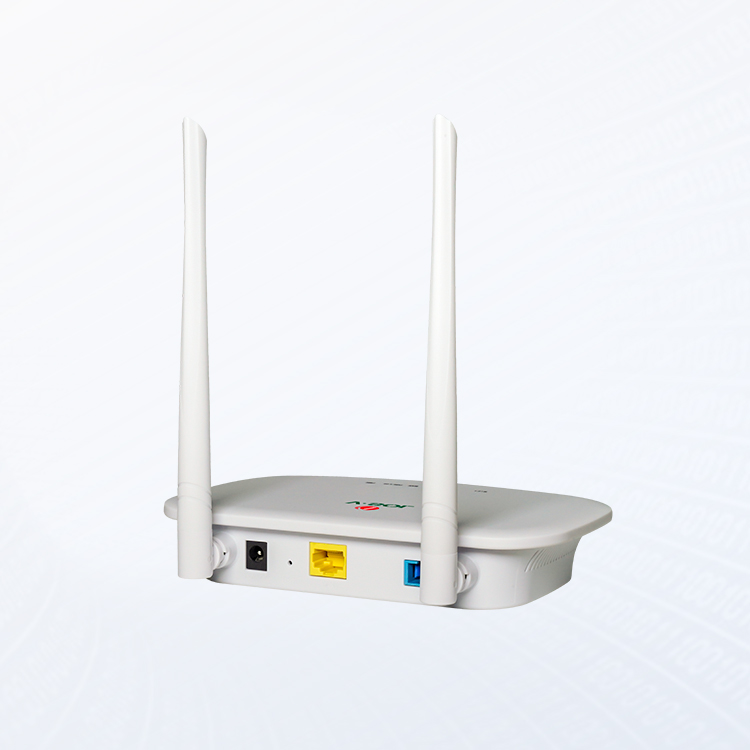

VSOL V2801RAC Wi-Fi ONU Router

Name: VSOL V2801RAC Wi-Fi ONU Router
Price: 2149 BDT
Availability: InStock

Vsol ONU Router V2804AX15-R WiFi6 Dual Band Xpon

Vsol V2802DAC XPON 2GE WiFi5 Dual Band Onu Router

Original price was: 2,500.00৳ .Current price is: 2,149.00৳ .

🌙 Order now, shipped tomorrow

VSOL V2801RAC Wi-Fi ONU Router quantity

Estimated Delivery: Fri, Oct 02 – Sat, Oct 03

... people are viewing this right now

○ Hardware Parameter
Dimension	120mm×78mm×30m(L×W×H)
Net weight	0.15Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5~95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 1A, external AC-DC power adaptor
Power supply	≤ 6W
Interfaces	1GE+Wi-Fi 4
Indicators	POWER, LOS, PON, LAN, Wi-Fi

○ Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM
LAN interface	1*GE Auto-negotiation RJ45 ports
Wi-Fi interface	IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm),300Mbps Support 13 Channels

○ Function Data
PON mode	XPON Dual mode , Can access to mainstream EPON/GPON OLTs
Software mode	Routing mode
Wi-Fi	Wi-Fi Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES) Support: multiple SSID
Firewall	DDOS, Filtering Based on ACL/MAC/ URL.
Layer2	802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN.
Layer3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS.
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
O&M	WEB/TELNET/OAM/OMCI/TR069
