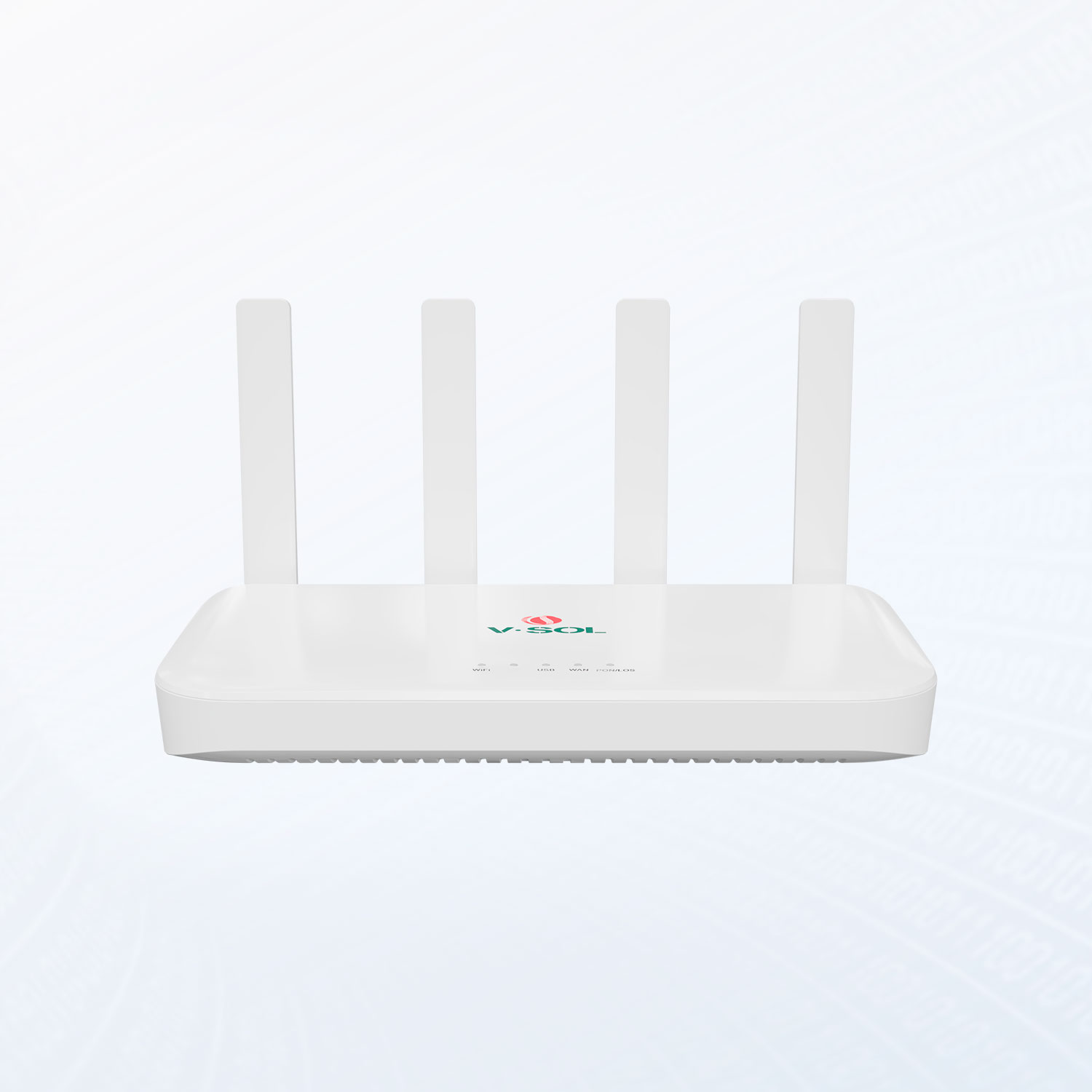

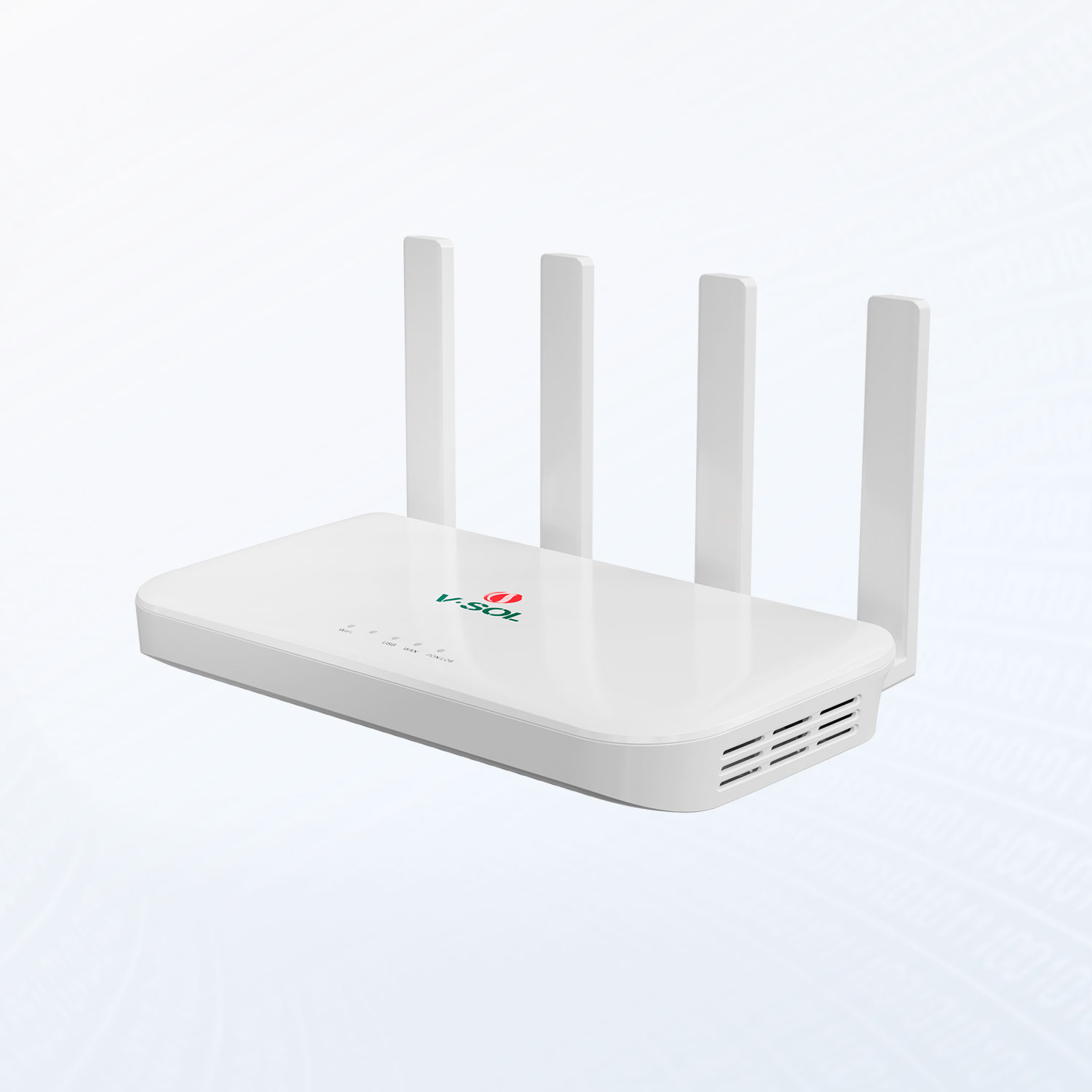

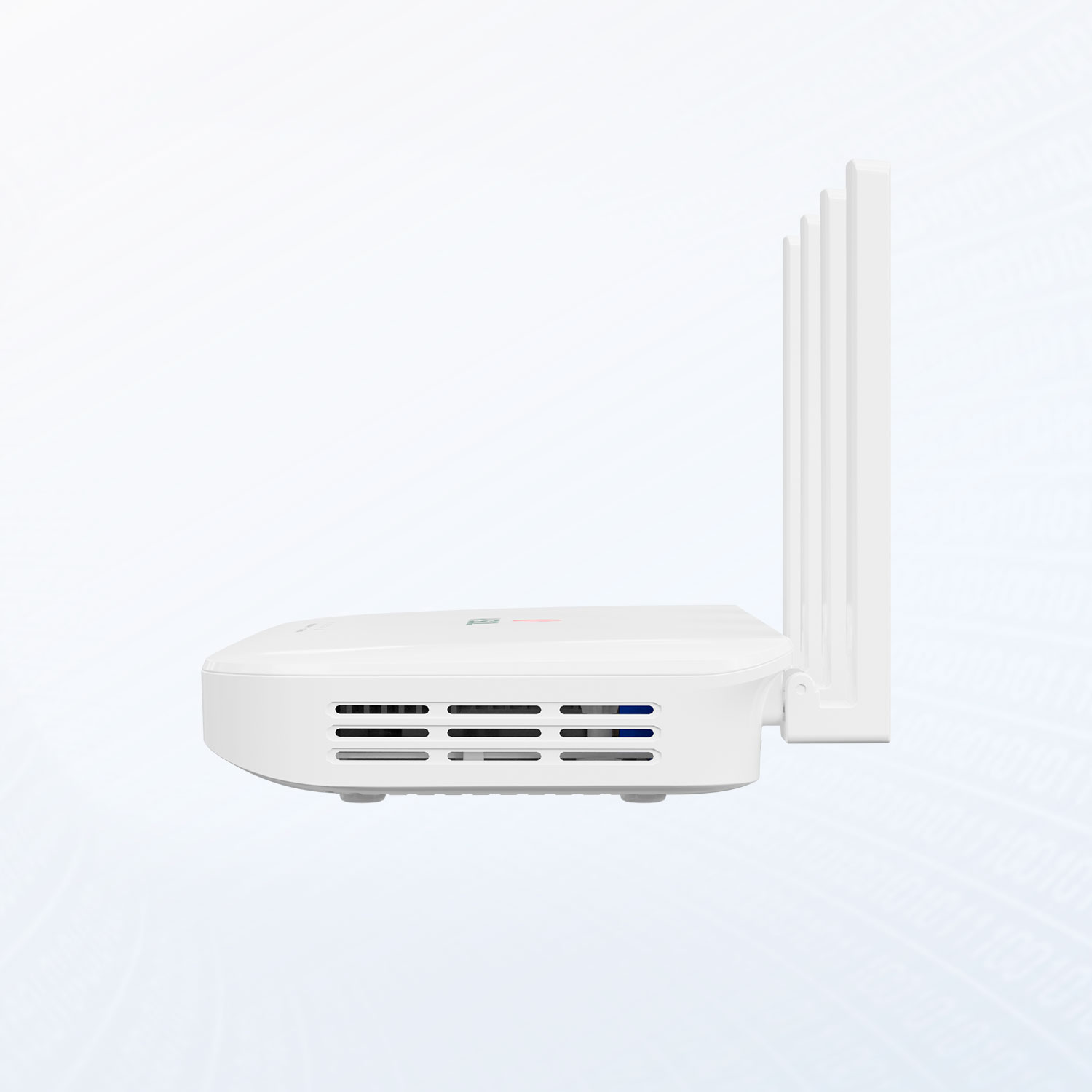

Vsol ONU Router V2804AX15-R WiFi6 Dual Band Xpon

VSOL V2801RAC Wi-Fi ONU Router

VSOL V2801RAC Wi-Fi ONU Router

Original price was: 2,500.00৳ .Current price is: 2,149.00৳ .

Original price was: 6,000.00৳ .Current price is: 5,399.00৳ .

Brand: VSOL
🌙 Order now, shipped tomorrow
  • Model: V2804AX15-R
  • 1XPON+4GE+1USB3.0+WiFi6
  • Supports MU-MIMO Technology
  • OFDMA Technology Reduced Latency by 75 percent
  • 01 years of warranty
  Estimated Delivery: Fri, Oct 02 – Sat, Oct 03
  ... people are viewing this right now
  Share
○ Hardware Parameter
Dimension 250mm×145mm×36mm(L×W×H)
Net weight 0.34Kg
Operating condition Operating temp: -10 ~ +55°C
Operating humidity:5 ~ 95%  (non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95%  (non-condensed)
Power adapter DC 12V, 1.0A, external AC-DC power adaptor
Power supply ≤18W

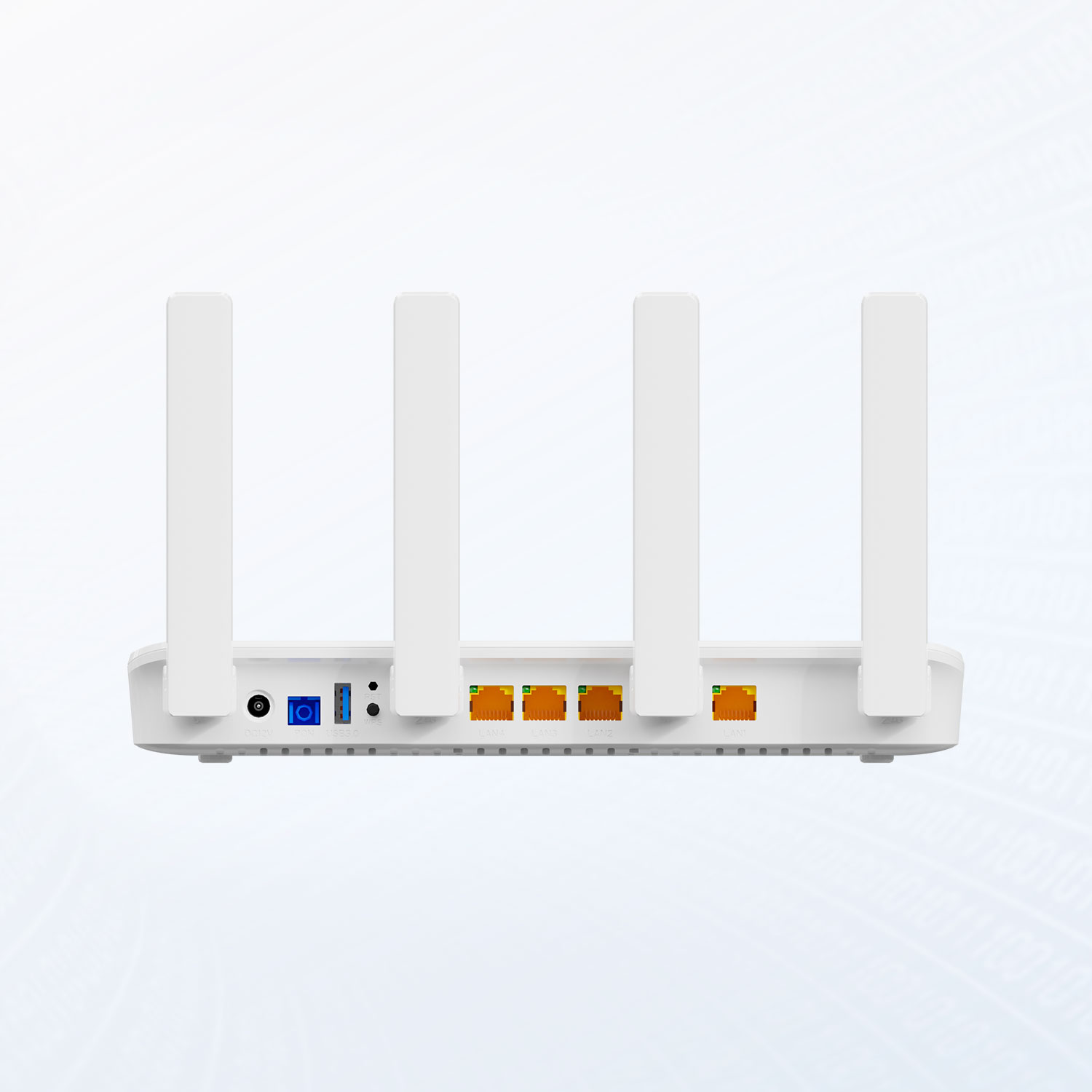

Interface 1XPON+1GE(WAN/LAN)+3GE(LAN)+USB3.0+Wi-Fi 6
Indicators PWR,PON ,LOS,WAN,Wi-Fi,ETH1~4,WPS,USB
○ Interface Parameter
PON Interface
  • 1XPON port(EPON PX20+ and GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or  -8dBm(GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
User interface
  • 4×GE, Auto-negotiation,RJ45 ports
Antenna 4 ×5dBi external antennas
USB 1×USB3.0 for Shared Storage/Printer
○ Function Data
O&M
  • WEB/TELNET/OAM/OMCI/TR069
  • Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Internet connection Support Routing Mode
Multicast
  • IGMP v1/v2/v3, IGMP snooping
  • MLD v1/v2 snooping
WIFI
  • Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz
  • Wi-Fi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3
  • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM
  • Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band
  • Support AX1500/AX1800/AX3000
L2 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
L3 IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS
Firewall Anti-DDOS, Filtering Based on ACL/MAC /URL
